Consult for options available.

Fuel reservoir : 30 gal. (113.6 L). Hydraulic oil reservoir : 44 gal. (166.6 L).

Type : Electronic-over-hydraulic. Controls : GOMACO’s exclusive G+ control system features forward and reverse steering and grade control. It is sensored off stringline or other methods from our sensor library. This provides ease of operation and accuracy in texturing and curing.

T/C-400 Type : Two end cars, each having two hydraulically powered, foam-filled rubber flotation tires. Tire size : 12 in. (305 mm) x 26 in. (660 mm).

Construction : All-steel welded frame, pin-connected main frame sections. Width : Adjustable from 12 ft. (3.66 m) up to 48 ft. (14.63 m). Standard width is 32 ft. (9.75 m). Consult for wider width needs. Optional frame extensions : Available in 2 ft. (.61 m), 4 ft. (1.22 m), 8 ft. (2.44 m), and 12 ft. (3.66 m) lengths. Optional power transition adjuster : Hydraulically adjusts for crown height and permits on-the-go crown adjustments. Optional : Off set jack mounts, four to allow 2 ft. (.61 m) more between end cars without extending the main frame.

Operator's platform assembly is standard on both machines.

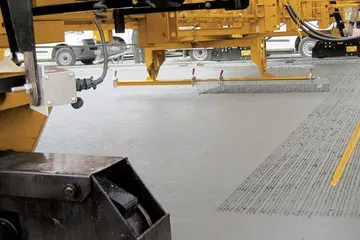

10 ft. (3.05 m) wide with 5 in. (127 mm) long wire tines spaced to meet specification requirements. Optional : Wire tine texturing members, fast change, and built to specifications.

250 gal. (946.4 L) reservoir, pump with hydraulic motor and controls. Includes spray bar, windshield, and work platform. Optional : 350 gal. (1324.9 L) reservoir. Optional : Platform assembly for reusable totes provides a quick cure tote exchange. Optional : Spray bar, windshield, and work platform extensions are available in 2 ft. (.61 m), 4 ft. (1.22 m), 8 ft. (2.44 m), and 12 ft. (3.66 m) lengths.

T/C-400 Transport Minimum width : 11 ft. (3.35 m). Minimum height : 10.8 ft. (3.29 m).

T/C-400 : Basic unit 14,100 lbs. (6396 kg). Note : Transport and operational weights and dimensions are variable, depending on the number of machine options.

The transport axle is hydraulically powered with 6.7 in. (170 mm) x 15 in. (381 mm) 12 ply tires and removable towing tongue for job-site use only.

Poly-roll attachment is pin-connected for quick attaching to the front of the T/C-600 texture/cure machine and is sectional for variable widths. Hydraulically driven variable speed motor, up to 40 rpm, powers the poly-roller to match ground speed. Motor is reversible or can be disconnected to allow roller to free wheel when unrolling. The poly-roller has a minimum length of 14.75 ft. (4.5 m) and can handle up to 500 ft. (152.4 m) of poly-roll depending on thickness and width of poly.
Roller extensions may be ordered for different machine widths.
Consult factory for different widths, lengths, and allowable weight of poly-roll.

32 ft. (9.75 m) texturing machine only, equipped same as standard machine, less curing system. 32 ft. (9.75 m) curing machine only, equipped same as standard machine, less wire tine texturing member assembly. Skewed tining option. Burlap drag assembly available for both texture/cure machines. Other options are available to customize machines to accommodate applications and customer needs.
